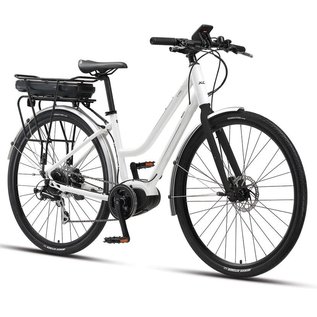

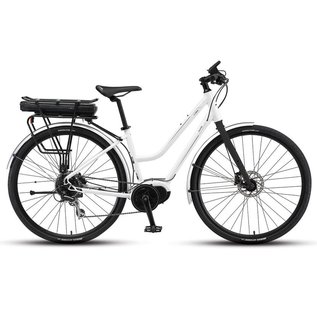

The XDS Ladies’ E-Cruz takes the effort out of commuting when you most need the support. With a Pedal Assist System (PAS) enabled Bafang Mid-Drive motor, your ride to work is made simple. Your pedalling is amplified by the motor, powering you along for a fraction of the effort. Arrive at your destination still as fresh and ready to go as when you left home on the E-Cruz.
SPECIFICATIONS
FRAME XDS Alloy
FORK XDS Alloy (CR/MO 700C 28.6)
HANDLEBAR XDS Alloy, Black (W: 660mm 6° 31.8mm)
GRIP Rubber, Black (XH-G107, 130mm)
STEM XDS Alloy, Black (φ28.6mm E:80mm H:41mm 7° ï¿ 31.8mm)
SEAT POST XDS Alloy, Black with Clamp (φ27.2x350mm)
SEAT CLAMP XDS Alloy, Quick Release (31.8mm)
SADDLE YBT Black
PEDALS FP with Ball Bearing (9/16")

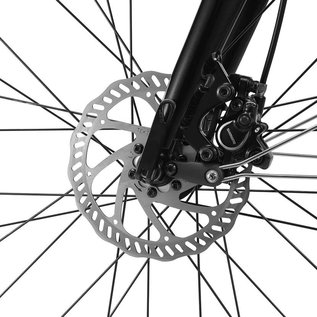

FRONT BRAKES Tektro Hydraulic Brake (TR160-7(ï¿ 160mm))
REAR BRAKES Tektro Hydraulic Brake (TR160-7(ï¿ 160mm))
BRAKE LEVERS Tektro Alloy Hydraulic Brake Levers
SPOKES Stainless Steel (13G)
TYRE 700Cx38C A/V 30TPI
REAR SHIFTER Shimano Acera Rapid Fire Plus SL-M360 8 Speed

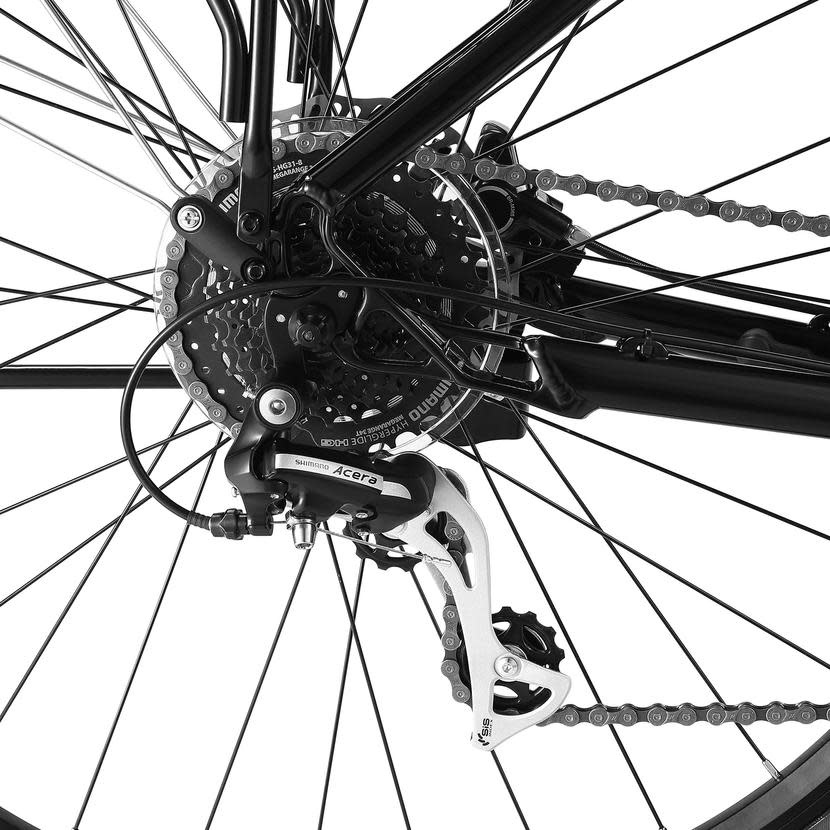

REAR DERALLIEUR Shimano Acera RD-M360 8 Speed
FREEWHEEL Shimano HG31 (11-34T 8-SPD)
CHAINWHEEL & CRANKS Bafang (3/32"x32T, 49mm) Cranks (9/16",L=170L,W/M8x1.0Px15Lx1)
CHAIN Steel (1/2"x3/32"x116L)
HEADSET Iron/Alloy (φ28.6xφ44xφ30mm 10PCS H=22mm HW-20)
FRONT HUB Alloy, KTMD7F (14Gx32H M9x100x108mm KT-204N 112mm)
REAR HUB Alloy, KTMD4R (14Gx32H M10x135x145mm 8/9/10-SP KT-205N 151mm)
MUDGUARDS PVC (SP-50A-700C-7A F/R 700C W=50mm ï¿ 3.2mm)
BELL Alloy/Plastic (ï¿ 22.2)
RACK Alloy (700C H:306.7/397.2mm 240mm )
KICKSTAND Iron
RIM Alloy (700Cx622x19x14Gx32H A/V H=21)
ELECTRICAL COMPONENTS

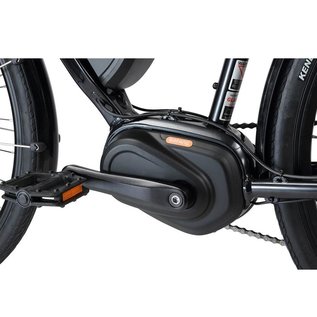

MOTOR BAFANG MM G330.250, 36V/250W, Limit 25km/h, Black,

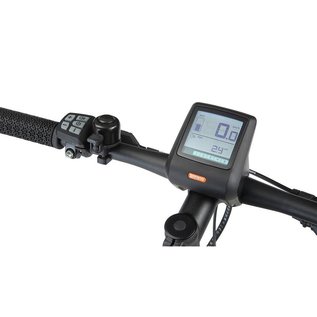

DISPLAY Bafang LCD Display, DC 36V, 0-5 Modes, UART, W/Walk Boost, W/light switch

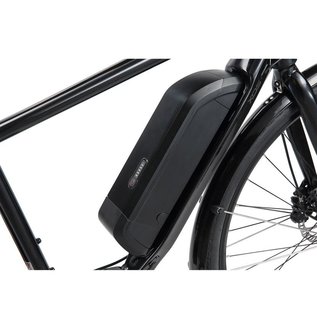

BATTERY 36V/11.6Ah, 2200mAh cell, W/Intelligent protection board,W/communication, AU
CHARGER INFORMATION
SSLC084V42XH GS CE 100-240V 1.6A(MAX)50/60HZ Output:42V 2A AU
MOTOR CABLE MM G33 power connection (1000mm, 1000mm)
GEAR SENSOR Included
SENSOR Bafang, 1 Pulse, 5V, 500mm
Specifications are subject to change at any time and without notice.
