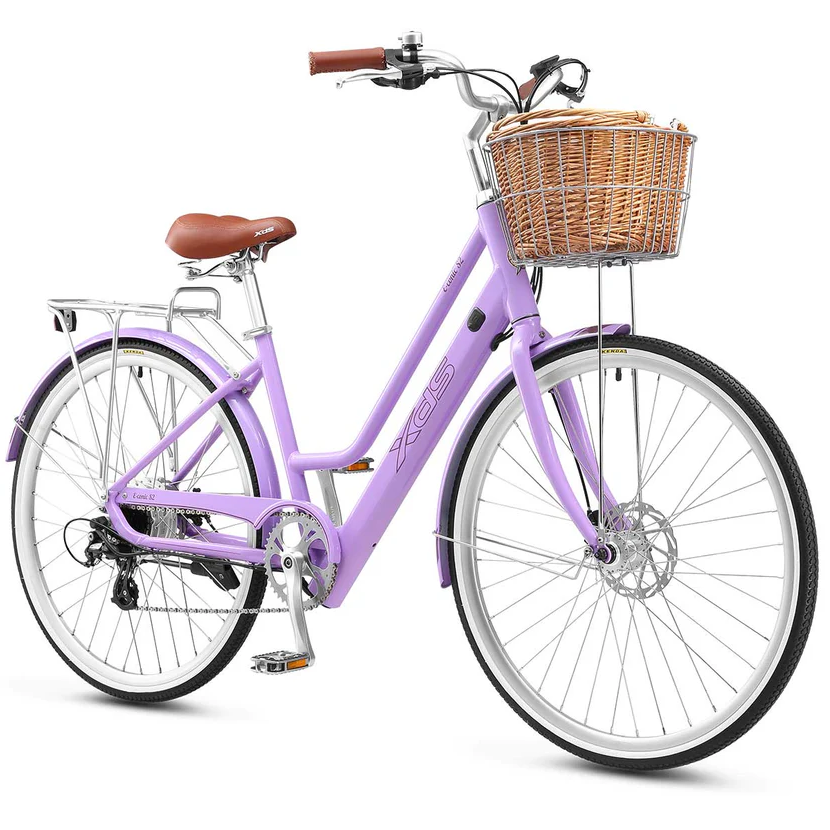

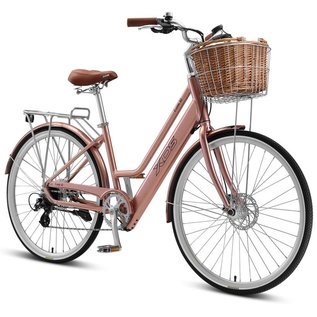

XDS - E-CONIC S2 HUB-DRIVE E-BIKE RETRO

E-Conic is where vintage meets modern. Capture the glamour of the retro look while getting from A to B, effortlessly. Stylish low step-through frame makes commuting even better, coupled with Shimano Altus 8-Speed and Tektro Disc Brakes for daily reliability. Frame integrated battery provides a seamless look while providing improved weight distribution.

Vintage Meets Modern
Capture the retro look without sacrificing the ease and comfort of a revolutionary electric bike. Fitted with a 250w Hub-Drive motor to power you through your daily commute or leisurely rides.

Lithium Ion Battery
A great electric bike needs a great battery to work. The E-CONIC comes with a frame integrated battery with 36v 2200mAh Panasonic cells to keep you going and going. Safety tested to strict international standards and comes with intelligent protection board for longevity and durability.

Supportive Posture
The comfortable Cionlli rail and spring saddle and swept back handlebars encourage riding with an upright posture for better spinal support.

SPECIFICATIONS

FRAME XDS Alloy 700c (HT:ф41xф34x160mm W:138mm RC:460mm)
FORK Steel 700c (φ28.6xφ25.4xφ30x198mm)
HANDLEBAR HL Alloy (W:610mm H:66mm)
GRIPS Rubber (L:130mm)
STEM HL Alloy (φ25.4*180mm*1.6T E=80mm 30°)
SEATPOST HL Alloy (φ27.2 x 300mm)
SEAT CLAMP HL Alloy, Quick Release
SADDLE Cionlli Comfort Saddle
PEDALS VP Non Slip Tread Alloy Body, 9/16"
FRONT BRAKES Tektro Cable Disc Brake
REAR BRAKES Tektro Cable Disc Brake
BRAKE LEVERS Tektro Alloy Lever and Bracket
SPOKES Stainless Steel (13G)
TYRE Kenda Cosmos 700 x 35c with White Wall
TUBE 700 x 35c
RIM XDS Alloy (700Cx622x19x13Gx36H)
REAR SHIFTER Shimano Altus SL-M310 Rapid Fire Plus 8 Speed
REAR DERAILLEUR Shimano Altus M-310
FREEWHEEL Shimano Cassette CS-HG200 12-32t 8 Speed
CHAINWHEEL & CRANKS 3/32" x 42T x 170mm
CHAIN KMC 1/2"x3/32"x116L
CHAINGUARD XDS F shape for 46T
BOTTOM BRACKET Cartridge Bottom Bracket (BC1.37"x24T 68mm L:118mm)
HEADSET φ25.4x φ34 x φ30mm H=36.6
FRONT HUB KT Alloy, 13Gx36H M9x100x108mm
REAR HUB See Electrical Specs below
MUDGUARDS XDS 700c F/R w 50mm
BELL Alloy/PP
RACK 700c H44.5mm L:218mm
KICKSTAND Steel
BASKET Steel & Cane

ELECTRICAL COMPONENTS
MOTOR Bafang RM G120.250.DC, 700C, 25km/h, 36V/250W
MOTOR CABLE Bafang CR S105.250.SN. 700", 36V-250W, 15A, 25km/H, 0-5 level
DISPLAY Bafang C10.UART LCD Display, DC 36V, 0-5 Modes
SENSOR Bafang SR PA01.12.S
BATTERY Phylion SF-03 CB5A0181 36V/11Ah
CHARGER INFO Phylion CZ2AG7J24 Input: 100-240V 1.6A(MAX) 47/63HZ / Output:42V 2A

Specifications are subject to change at any time and without notice.
